Decision Tree: A Step-by-Step Guide with Examples

Updated on: 19 June 2024 | 12 min read
Sharesocial-toggle
social-share-facebook
social-share-linkedin
social-share-twitter
Link Copied!
hero-img

Today, in our data-driven world, it’s more important than ever to make well-informed decisions. Whether you work with data, analyze business trends, or make important choices in any field, understanding and utilizing decision trees can greatly improve your decision-making process. In this blog post, we will guide you through the basics of decision trees, covering essential concepts and advanced techniques, to give you a comprehensive understanding of this powerful tool.

What is a Decision Tree?

Let’s start with the definition of Decision Tree.

A decision tree is a graphical representation that outlines the various choices available and the potential outcomes of those choices. It begins with a root node, which represents the initial decision or problem. From this root node, branches extend to represent different options or actions that can be taken. Each branch leads to further decision nodes, where additional choices can be made, and these in turn branch out to show the possible consequences of each decision. This continues until the branches reach leaf nodes, which represent the final outcomes or decisions.

Decision Tree Diagram
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

The decision tree structure allows for a clear and organized way to visualize the decision-making process , making it easier to understand how different choices lead to different results. This is particularly useful in complex scenarios where multiple factors and potential outcomes need to be considered. By breaking down the decision process into manageable steps and visually mapping them out, decision trees help decision-makers evaluate the potential risks and benefits of each option, leading to more informed and rational decisions.

Decision trees are useful tools in many fields like business, healthcare, and finance. They help analyze things systematically by providing a simple way to compare different strategies and their likely impacts. This helps organizations and individuals make decisions that are not only based on data but also transparent and justifiable. This ensures that the chosen path aligns with their objectives and constraints.

Decision Tree Symbols

Understanding the symbols used in a decision tree is essential for interpreting and creating decision trees effectively. Here are the main symbols and their meanings:

Decision Tree Symbols

  • Decision node: A point in the decision tree where a choice needs to be made. Represents decisions that split the tree into branches, each representing a possible choice.
  • Chance node: A point where an outcome is uncertain. Represents different possible outcomes of an event, often associated with probabilities.
  • Terminal (or end) node: The end point of a decision path. Represents the final outcome of a series of decisions and chance events, such as success or failure.
  • Branches: Lines that connect nodes to show the flow from one decision or chance node to the next. Represent the different paths that can be taken based on decisions and chance events.
  • Arrows: Indicate the direction of flow from one node to another. Show the progression from decisions and chance events to outcomes.

Types of Decision Trees

It’s important to remember the different types of decision trees: classification trees and regression trees. Each type has various algorithms, nodes, and branches that make them unique. It’s crucial to select the type that best fits the purpose of your decision tree.

Classification Trees

Classification trees are used when the target variable is categorical. The tree splits the dataset into subsets based on the values of attributes, aiming to classify instances into classes or categories. For example, determining whether an email is spam or not spam.

Classification Tree Example for Decision Tree Guide
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

Regression Trees

Regression trees are employed when the target variable is continuous. They predict outcomes that are real numbers or continuous values by recursively partitioning the data into smaller subsets. For example, predicting the price of a house based on its features.

Regression Tree Example for Decision Tree Guide
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

How to Make a Decision Tree in 7 Steps

Follow these steps and principles to create a robust decision tree that effectively predicts outcomes and aids in making informed decisions based on data.

1. Define the decision objective

  • Identify the goal: Clearly articulate what decision you need to make. This could be a choice between different strategic options, such as launching a product , entering a new market, or investing in new technology.
  • Scope: Determine the boundaries of your decision. What factors and constraints are relevant? This helps in focusing the decision-making process and avoiding unnecessary complexity.

2. Gather relevant data

  • Collect information: Gather all the necessary information related to your decision. This might include historical data, market research, financial reports, and expert opinions.
  • Identify key factors: Determine the critical variables that will influence your decision. These could be costs, potential revenues, risks, resource availability, or market conditions.

3. Identify decision points and outcomes

  • Decision points: Identify all the points where a decision needs to be made. Each decision point should represent a clear choice between different actions.
  • Possible outcomes: List all potential outcomes or actions for each decision point. Consider both positive and negative outcomes, as well as their probabilities and impacts.

4. Structure the decision tree

  • Root node: Start with the main decision or question at the root of your tree. This represents the initial decision point.
  • Branches: Draw branches from the root to represent each possible decision or action. Each branch leads to a node, which represents subsequent decisions or outcomes.
  • Nodes: At the end of each branch, add nodes that represent the next decision point or the final outcome. Continue branching out until all possible decisions and outcomes are covered.
Decision Tree Template for Decision Tree Guide
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

5. Assign probabilities and values

  • Probability of outcomes: Assign probabilities to each outcome based on data or expert judgment. This step is crucial for evaluating the likelihood of different scenarios.
  • Impact assessment: Evaluate the impact or value of each outcome. This might involve estimating potential costs, revenues, or other metrics relevant to your decision.

6. Calculate expected values

  • Expected value calculation: For each decision path, calculate the expected value by multiplying the probability of each outcome by its impact, and summing these values.
    • Example: For a decision to launch a product, you might have a 60% chance of success with an impact of $500,000, and a 40% chance of failure with an impact of -$200,000.
    • Expected value: (0.6 * $500,000) + (0.4 * -$200,000) = $300,000 - $80,000 = $220,000
  • Compare paths: Compare the expected values of different decision paths to identify the most favorable option.

7. Optimize and prune the tree

  • Prune irrelevant branches: Remove branches that do not significantly impact the decision. This helps in simplifying the decision tree and focusing on the most critical factors.
  • Simplify the tree: Aim to make the decision tree as straightforward as possible while retaining all necessary information. A simpler tree is easier to understand and use.

How to Read a Decision Tree

Reading a decision tree involves starting at the root node and following the branches based on conditions until you reach a leaf node, which represents the final outcome. Each node in the tree represents a decision based on an attribute, and the branches represent the possible conditions or outcomes of that decision.

For example, in a project management decision tree, you might start at the root node, which could represent the choice between two project approaches (A and B). From there, you follow the branch for Approach A or Approach B. Each subsequent node represents another decision, such as cost or time, and each branch represents the conditions of that decision (e.g., high cost vs. low/medium cost).

As you continue following the branches, you eventually reach a leaf node, which gives you the final outcome based on the path you took. For instance, if you followed the path for Approach A with high cost, you might reach a leaf node indicating project failure. Conversely, Approach B with a short time might lead you to a leaf node indicating project success.

Decision Tree Best Practices

Follow these best practices to develop and deploy decision trees that are reliable and effective tools for making informed decisions across various domains.

  1. Define clear objectives: Clearly articulate the decision you need to make and its scope. This helps in focusing the analysis and ensuring the decision tree addresses the right questions.
  2. Gather quality data: Gather relevant and accurate data that will be used to build and validate the decision tree. Ensure the data is representative and covers all necessary factors influencing the decision.
  3. Keep it simple: Aim for simplicity in the decision tree structure. Avoid unnecessary complexity that can confuse users or obscure key decision points.
  4. Understand and involve stakeholders: Involve stakeholders who will be impacted by or involved in the decision-making process. Ensure they understand the decision tree’s construction and can provide input on relevant factors and outcomes.
  5. Validate and verify: Validate the data used to build the decision tree to ensure its accuracy and reliability. Use techniques such as cross-validation or sensitivity analysis to verify the robustness of the tree.
  6. Interpretability: Use clear and intuitive visual representations of the decision tree. This aids in understanding how decisions are made and allows stakeholders to follow the logic easily.
  7. Consider uncertainty and risks: Incorporate probabilities of outcomes and consider uncertainties in data or assumptions. This helps in making informed decisions that account for potential risks and variability.

How Can a Decision Tree Help with Decision Making?

A decision tree simplifies the decision-making process in several key ways:

  1. Visual clarity: It presents decisions and their possible outcomes in a clear, visual format, making complex choices easier to understand at a glance.
  2. Structured approach: By breaking down decisions into a step-by-step sequence, it guides you through the decision-making process, ensuring that all factors are considered.
  3. Risk assessment: It incorporates probabilities and potential impacts of different outcomes, helping you evaluate risks and benefits systematically.
  4. Comparative analysis: Decision trees allow you to compare different choices side by side, making it easier to see which option offers the best expected value or outcome.
  5. Informed decisions: By organizing information logically, decision trees help you make decisions based on data and clear reasoning rather than intuition or guesswork.
  6. Flexibility: They can be easily updated with new information or adjusted to reflect changing circumstances, keeping the decision-making process dynamic and relevant.

Decision Tree Examples

Here are some decision tree examples to help you understand them better and get a head start on creating them. Explore more examples with our page on decision tree templates .

Decision Tree Analysis Example

This template helps make informed decisions by systematically organizing and analyzing complex information, ensuring clarity and consistency in the decision-making process.

Decision Tree Analysis Example for Decision Tree Guide
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

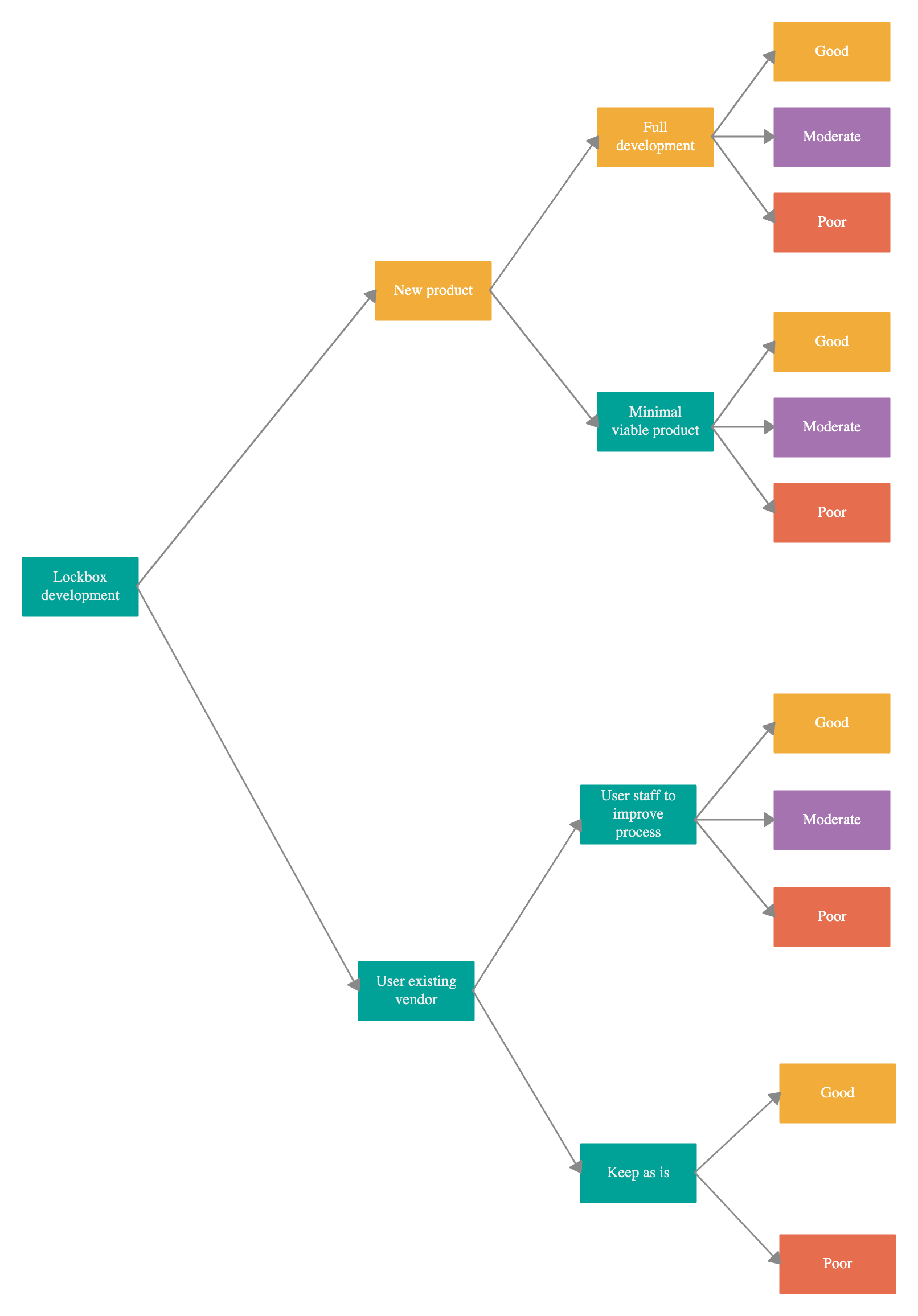

Bank decision tree

This Decision Tree helps banks decide if they should launch a new financial product by predicting outcomes based on market demand and customer interest. It guides banks in assessing risks and making informed decisions to meet market needs effectively.

Bank decision tree for Decision Tree Guide
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

Risk decision tree for software engineering

The tree shows possible outcomes based on the severity and likelihood of each risk, guiding teams to make informed decisions that keep projects on track and within budget.

Risk decision tree for software engineering
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

Simple Decision Tree

Use this simple decision tree to analyze choices systematically and clearly before making a final decision.

Simple Decision Tree
Edit this Template
  • Ready to use
  • Fully customizable template
  • Get Started in seconds
exit full-screen Close

Advantages and Disadvantages of a Decision Tree

Understanding these advantages and disadvantages helps in determining when to use decision trees and how to mitigate their limitations for effective machine learning applications.

AdvantagesDisadvantages
Easy to interpret and visualize.Can overfit complex datasets without proper pruning.
Can handle both numerical and categorical data without requiring data normalization.Small changes in data can lead to different tree structures.
Captures non-linear relationships between features and target variables effectively.Tends to favor dominant classes in imbalanced datasets.
Automatically selects significant variables and feature interactions.May struggle with complex interdependencies between variables.
Applicable to both classification and regression tasks across various domains.Can become memory-intensive with large datasets.

Using Decision Trees in Data Mining and Machine Learning

Decision tree analysis is a method used in data mining and machine learning to help make decisions based on data. It creates a tree-like model with nodes representing decisions or events, branches showing possible outcomes, and leaves indicating final decisions. This method helps in evaluating options systematically by considering factors like probabilities, costs, and desired outcomes.

The process begins with defining the decision problem and collecting relevant data. Algorithms like ID3 or C4.5 are then used to build the tree, selecting attributes that best split the dataset to maximize information gain. Once constructed, the tree is analyzed to understand relationships between variables and visualize decision paths.

Decision tree analysis is commonly used in;

Business decision making:

  • Strategic planning: Evaluating different strategic options and outcomes.
  • Operational efficiency: Optimizing workflows and processes.

Healthcare:

  • Medical diagnosis: Assisting in diagnosing diseases.
  • Treatment plans: Determining the best treatment options.

Finance:

  • Credit scoring: Evaluating creditworthiness of loan applicants.
  • Investment decisions: Assessing risks and returns of investments.

Marketing:

  • Customer segmentation: Identifying customer groups for targeted marketing.
  • Campaign effectiveness: Predicting success of marketing campaigns.

Environmental science:

  • Environmental planning: Analyzing impacts of environmental policies.
  • Conservation efforts: Identifying critical areas for conservation.

Risk assessment:

  • Project risk analysis: Evaluating project risks and their impacts.
  • Operational risk management: Identifying and mitigating operational risks.

Diagnostic reasoning:

  • Fault diagnosis: Detecting faults in industrial processes.
  • System troubleshooting: Guiding troubleshooting in technical systems.

While decision tree analysis offers clarity and flexibility, it can become too specific if not pruned properly and is influenced by variations in input data. Overall, decision tree analysis is valuable for pulling out useful insights from complicated datasets to help with decision-making.

Wrapping up

A decision tree is an invaluable tool for simplifying decision-making processes by visually mapping out choices and potential outcomes in a structured manner. Despite their straightforward approach, decision trees offer robust support for strategic planning across various domains, including project management. While they excel in clarifying decisions and handling different data types effectively, challenges like overfitting and managing complex datasets should be considered. Nevertheless, mastering decision tree analysis empowers organizations to make well-informed decisions by systematically evaluating options and optimizing outcomes based on defined criteria.
