Colors, Fills and Gradients

1. Style Your Creately Diagrams
2. Video Demo on Styling your diagrams

How do I change colors, fills, gradients and borders?

Creately makes it easy to create professional flowcharts, Org Charts or just about any type of diagram you'd like to draw. All styling of your objects can be done from the Main Toolbar's 1-Click Style, Fill and Line buttons.

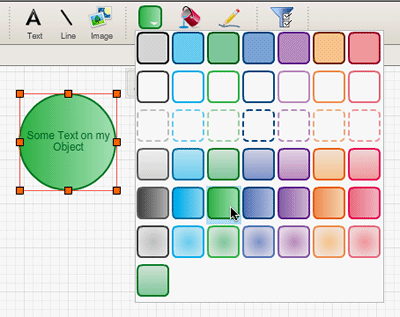

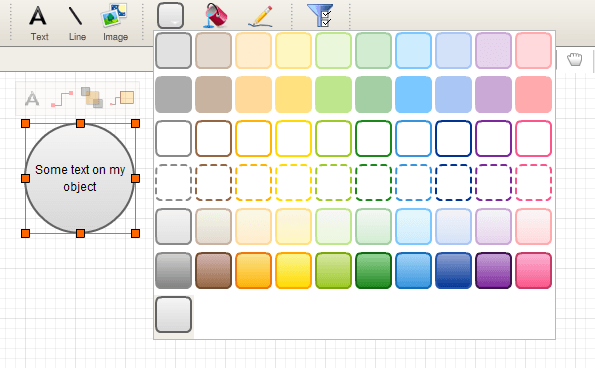

• 1-Click Style button for easy Styling

  We know you want beautiful diagrams, so we've made it very easy to add colorful fills, gradients and borders to you diagrams. The 1-Click Style button lets you select from a fantastic range of preset styles for your objects.

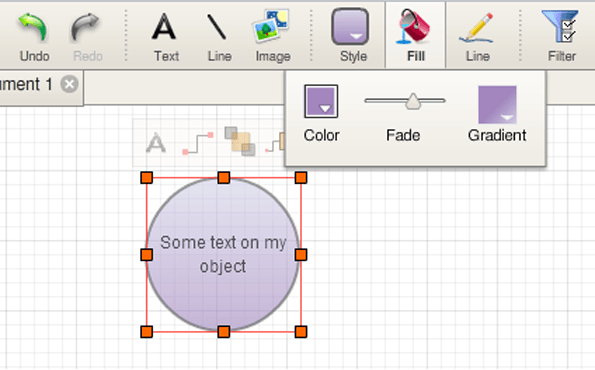

• Color Fill buttons

  If you'd like more fine-grained control over the look of your shapes, simply mouse-over the Fill button on the Main Toolbar to reveal palettes for Color Fill, Fade (Transparency) and Gradient.

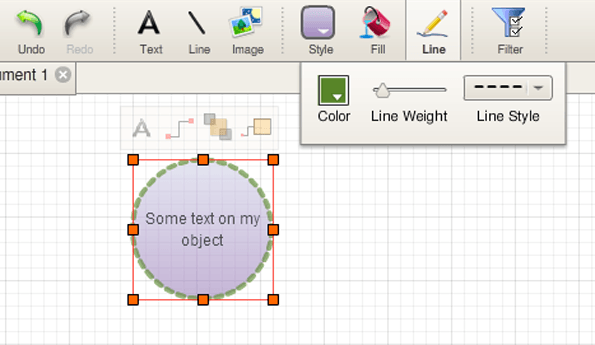

• Line (Stroke) buttons

  Mouse-over the Line Button in the Main Toolbar to adjust the border or stroke of your object. Here you can change the border Color, Line Weight and Line Style to make it a dashed border.

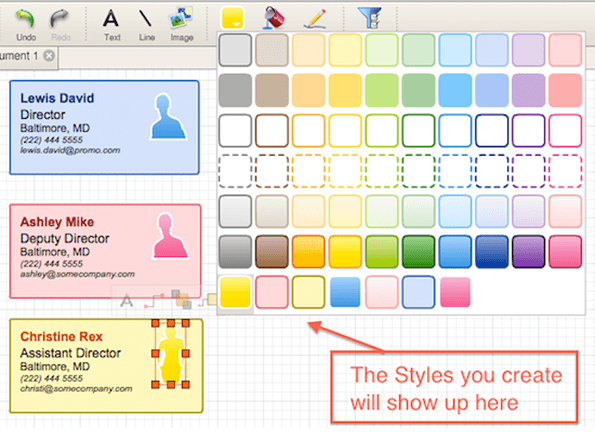

• Re-use Custom made Styles

  Do you want to re-use your custom made styles on more than one object on any diagram? Creately now identifies all the unique custom made styles on your diagram and will arrange them at the bottom of the preset styles for your objects. This can display upto 20 styles that are on any diagram. You can now re-use your custom made styles on any other object in 1-click.


Styling Diagrams Video Tutorial - Learn to style your Creately diagrams
