Learn to create easy to configure Database Diagrams

1. Database Table
2. Database Connectors

How do you use the Database Table Object to create a Database Diagram?

Configuring the DB Table is not difficult, read below to understand how!

• Drag-n-Drop a Database Table object from the Left Panel, click to edit Text to configure your Table.

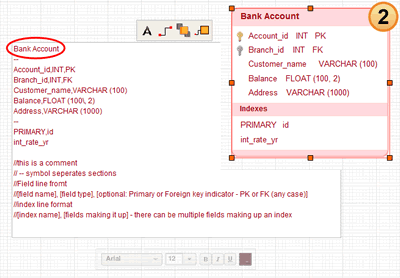

• Give your DB Table object a name, which also becomes the name of the KObject.



• "--" (two hyphens) splits the Table into 3 sections as follows:

  Table Name

  --

  Table Fields

  --

  Table Indices

• Insert line breaks in each section to define new Table Fields or Table Indices.

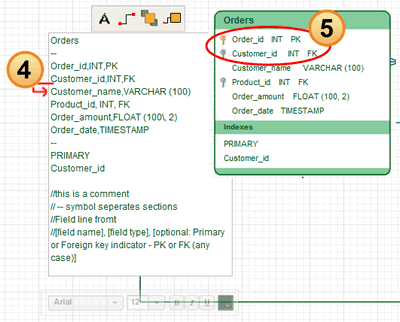

• When defining fields, a row can also be split by "," (commas) as follows:

  fieldname, TYPE(size), KeyType

  Note - The key type should be either PK for Primary Key or FK for Foreign Key.

How do you create connections between Objects in a Database Diagram?

Here's a simple tip!

• Relationship connection is the only connector type available from a DB Table to another DB Table. This also has a range of arrow heads on both sides to choose from.
