The Creately Gadget can be embedded in Google Sites either by selecting it from the Google Sites Gadget directory or by directly using the Creately Google Gadget URL.

Selecting the Gadget from the sites Gadget directory

1. Go to the Google Site page that you would like to insert your Creately Diagram in and click on Edit page to edit the page.

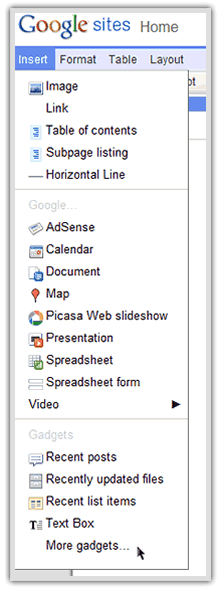

2. To include a Gadget, Select Insert > More Gadgets from the Main Menu.

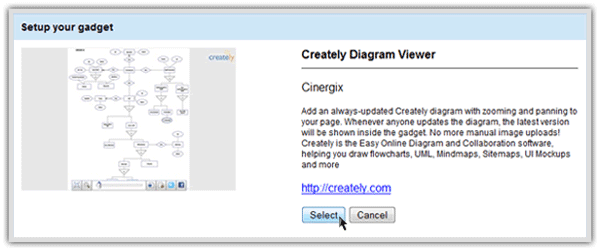

3. In the pop-up, search for 'Creately Diagram', and select the Creately Diagram Viewer.



4. Click Select to embed the Creately Gadget on your site.

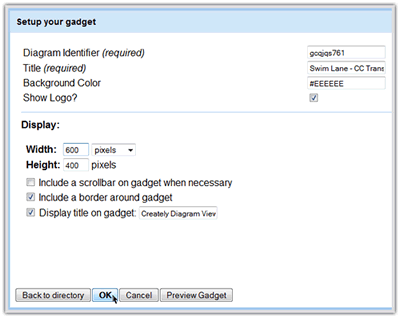

5. The next new pop-up will appear asking you for the details of the diagram you want to embed. Punch in the Diagram Identifier and Title; specify the Gadget's display dimensions and click OK to add your Gadget within your Site page.

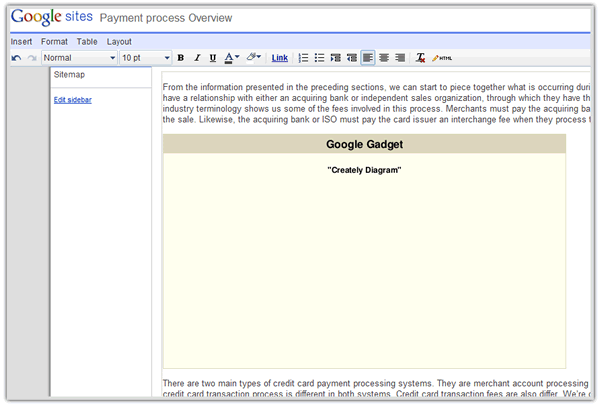

6. Now, the Gadget is configured and added to your site page.

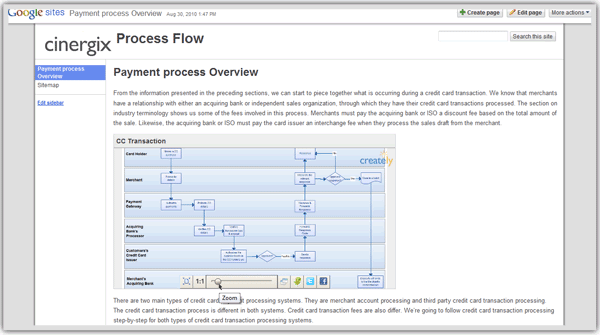

7. Save the page to view your Creately diagram in the site. Whenever you update and save the Creately Diagram, this image will update itself!
